Automatic Residual Yarn Remover for the Circular Loom
Automatic Residual Yarn Remover for the Circular Loom
Couldn't load pickup availability

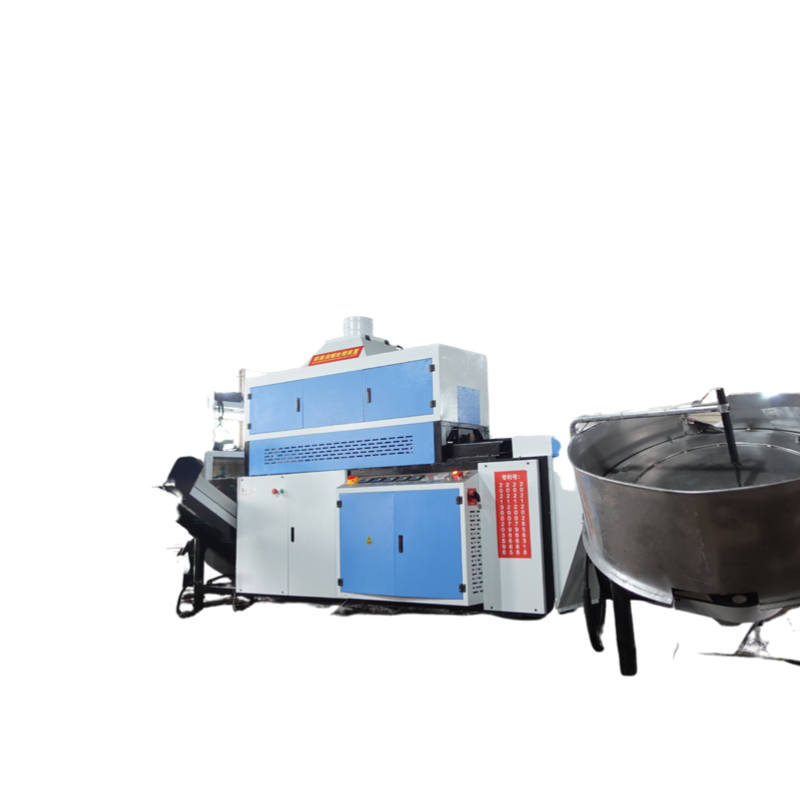

Automatic Residual Yarn Remover for the Circular Loom
This machine is used to handle the yarn remaining on the bobbin of the circular loom that is previously cut manually or heated using the heating wire. It is able to separate the residual yarn from the bobbin automatically and quickly. Well-designed, this machine does not cause any harm to the bobbin when removing residual yarn from it. The residual yarn can be removed from the bobbin automatically by simply placing the copper bobbin containing residual yarn into the feeding port. To avoid waste, feeding material monitoring is strictly implemented to timely identify spindles that are still available.
|
Type |
LF-90-4 |
|
Bobbin size |
≤50mm |
|
Cutting speed |
65-70/min |
|
Total power |
2.2KW |
|
Main motor |
0.75KW |
|
Main motor reducer |
1:30 |
|
Turntable motor |
0.75KW |
|
Turntable reducer |
1:60 |
|
Conveying motor |
0.4KW |
|
Conveyor reducer |
1:30 |
|
Smoke exhaust motor |
0.2KW |
|
Start-up current |
18A |
|
Current in use |
8a（4KW） |
|
Electric heating 2 PCS |
1200W |
|
Electric heating 6 PCS |
800W |
|
Turntable electric heating 2 |
120W |
|
Main machine Size |
3500*1200*1800mm |
|
Feeding turntable size |
1300*1200mm |
|
Weight |
950kgs |
