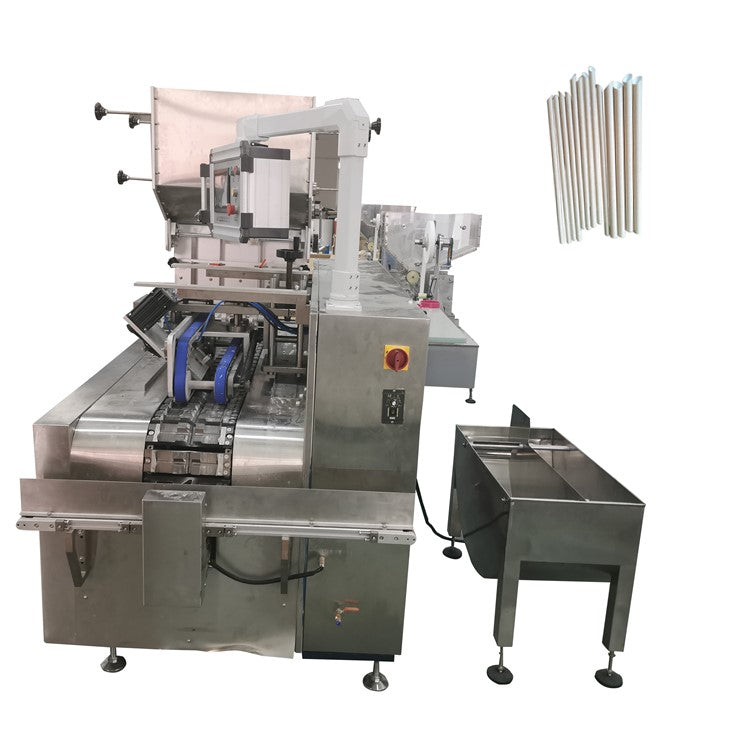

Automatic sharped paper straw machine

Automatic sharped paper straw machine

1. The device realizes the automatic oblique cutting of a single double (or single) length suction pipe into two (or single) suction pipes, which integrates the automatic dropping of suction pipe and oblique cutting.
2. This machine is controlled by PLC. The host machine is equipped with frequency conversion and speed regulation. The man-machine interface is touch screen. It is simple to set and easy to operate.
3. The cutting part adopts multi-knife cutting system, which has no waste, high precision, time-saving and high efficiency.
4. The main accessories are made of stainless steel to ensure the hygiene and environmental protection of the products.

5. Model	XG-926
   Capacity Max.	600-1200pcs/min
   Straw Diameter	4-14 mm
   Long paper straw	220-480mm
   Sharped Straw Length	110-240mm
   Motor	0.75 kw
   Voltage	220V*2P
   Motor	Liuan
   Plc	XINJIE
   Servo	INVT
   Mould	6/8/10/12
   Blade	4pieces
   Useful tool	1 set
   Dimension in wooden box(L*W*H)	2.2*1.22*1.88/0.92*0.92*0.68
   Weight in wooden box	1125KG

whatspp contact:  +86 13587995528 (caroline )
