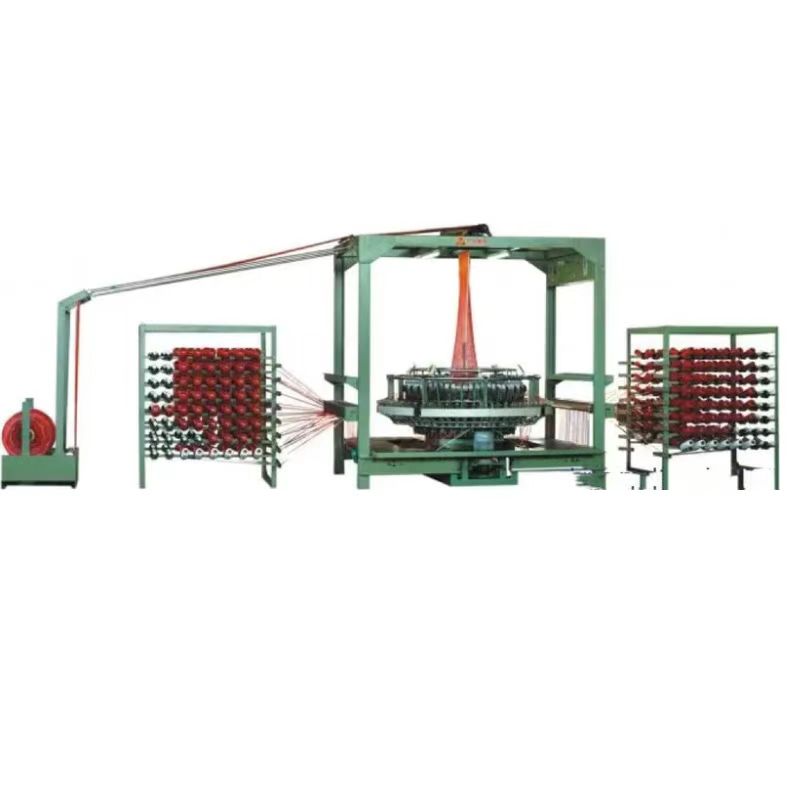

circular loom net bags knitting machine
circular loom net bags knitting machine
Couldn't load pickup availability
circular loom net bags knitting machine
1). Little cam type and convex table as well as swing-beam rolling wheel transmission is adopted, making it easy and stable to run.
2). Slide block and rod are eliminated while the wearing parts are decreased. Rolling transmission is adopted in entire structure, which doesn't need lubricant.
3). Frequency speed regulation which is convenient and stable is adopted.
4). It is configured with automatically stop detecting unit when meeting the situation of warp/weft breaking, weft ending. The stoppage unit is sensitive and reliable.
|
Item |
LF-WYJ-750/4 |
|
Number of shuttle |
4 |
|
Folding width of weaving(mm) |
300-750 |
|
Max. Number of warp |
768 |
|
Rotational speed of main motor(r/min) |
180 |
|
Production(m/min) |
1.5-2.4 |
|
motor power(kw) |
2.2 |
|
Weight(kg) |
1500 |
|
Installing Dimensions |
12*2.4*2.6 |
