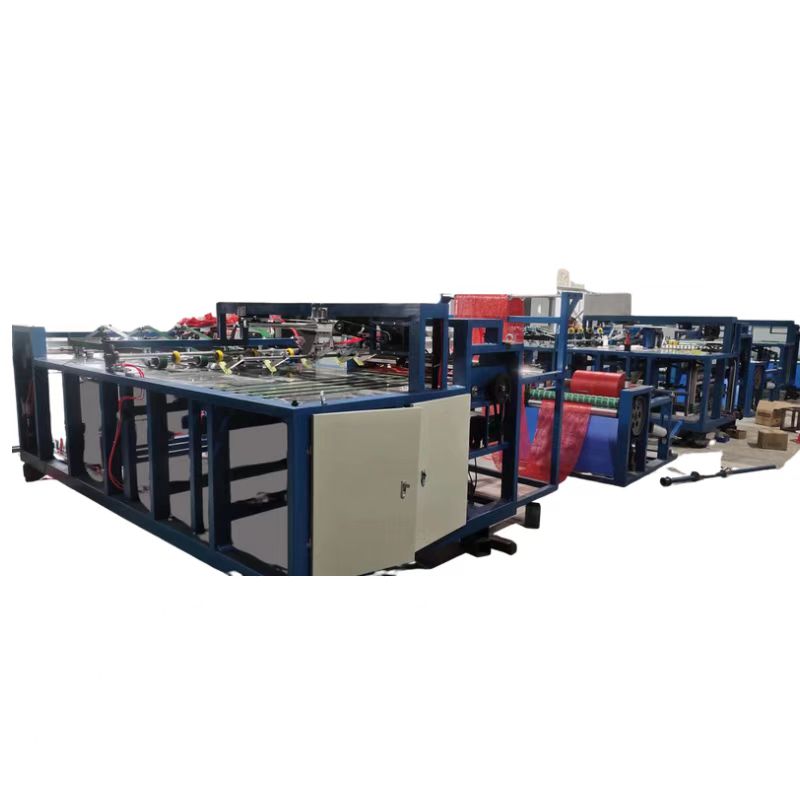

cutting and sewing machine for mesh bags
cutting and sewing machine for mesh bags
Couldn't load pickup availability
cutting and sewing machine for mesh bags
Product characteristics
- PLC programmable automatic control, high degree of automation;
- Touch screen operation, simple and intuitive;
- The servo motor drives the bag feeding, and the control length is high;
- System alarm, electrical fault and working status are clear at a glance;
- The main components and electrical components performance is reliable;
- Use a special knife to cut eagerly, the bag is not loose, and the bag mouth is easy to open;
- Compact structure, small footprint;
|
mesh roller diameter |
Max 1200mm |
|
mesh roller width |
300~800mm |
|
bags length |
500~1350mm |
|
Cutting accuracy |
±2mm |
|
Bag bottom hem width |
20~30mm |
|
speed |
Max 36pcs/min |
|
Sewing machine stitch width |
9~12mm |
|
total power |
9.3kw |
|
heating power |
2.2kw |
|
Air consumption |
0.6m3/min |
|
size |
3900×1850×1540mm |
|
weight |
2.2T |
-
Shipping
Share the details of your shipping policy.
-
Returns
Share the details of your return policy.
our factory
pp woven bags machine
Wenzhou lifei Machinery Co., Ltd locates in Wenzhou city, Zhejiang Province, China. It has been recognized by the authority, which gathering scientific research, manufacturing, sales, and import& export business as a whole.
Wenzhou lifei Machinery Co., Ltd
We will, as always, adhere to the "Credit creates benefits, quality produces life" purposes.LIFEI Company heart-fully hopes to supply the best machinery and service for each customer.
