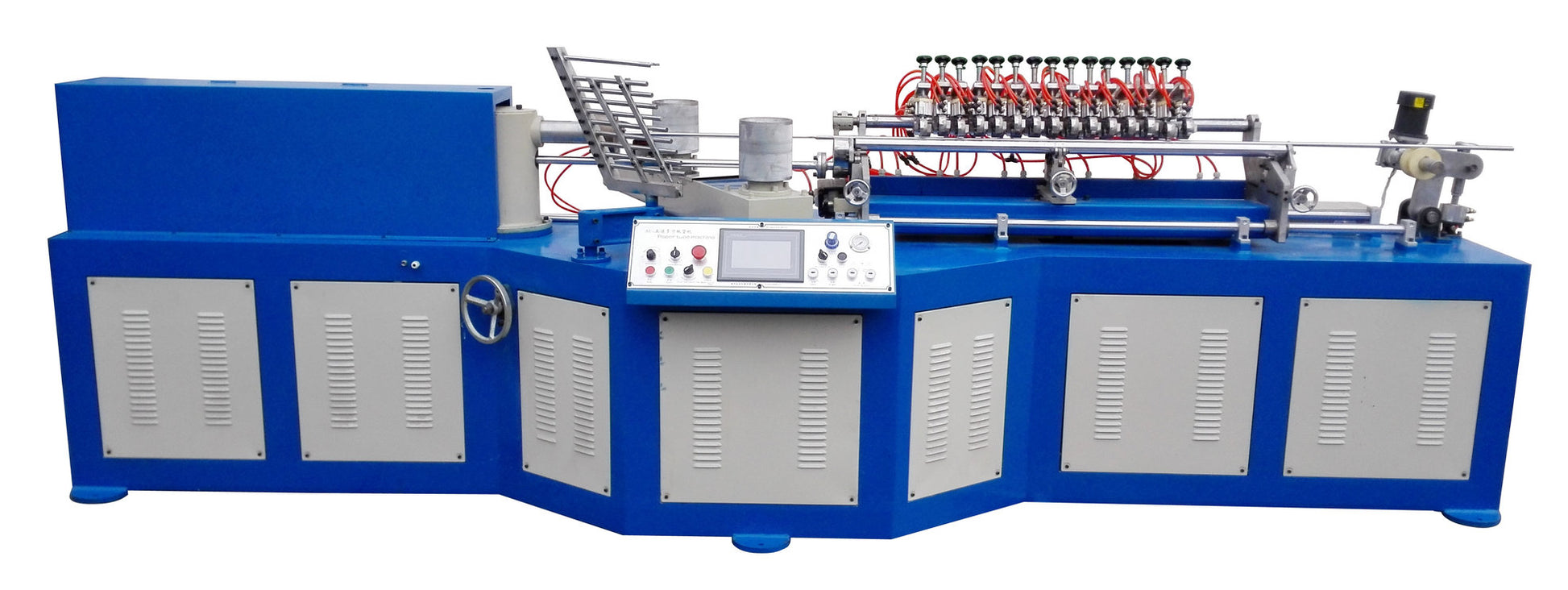

HIGH SPEED PAPER TUBE MACHINE
HIGH SPEED PAPER TUBE MACHINE
Couldn't load pickup availability
HIGH SPEED PAPER TUBE MACHINE
USE:
Suitable for all kind of paper tube / paper can production. Such as package tin, tea caddy,
food cans, wine cans, fireworks tube, calendar tube, fax paper core, etc.
FEATURE:
With online multi-cut blades, no need secondary cutting, save labor and time.
|
Technical Parameter |
Control system |
|||
|
Number of roller |
3-8 layer |
PLC controller |
Delta DVP28SV |
|
|
Tube diameter |
10--60 mm |
Touch screen |
MCGS TPC7062 |
|
|
Tube wall-thickness |
0.5-3 mm |
Invert |
YASKAWA 3.7 KW |
|
|
Core mould fixed way |
Flank chuck |
Electric part |
CHINT |
|
|
Winding head |
2 |
Single part |
SHHG |
|
|
Cutting way |
Servo synchronism multi-blade cutting |
Pneumatic part |
AIRTAC |
|
|
Gluing way |
Single / double sides |
Fix length way |
Encode |
|
|
Operator |
1-2 person |
Equip device |
||
|
Winding speed |
20-40 m/min |
Paper shelf type |
Crisscross |
|
|
Speed control |
Invert |
Auto fall tube shelf |
Have |
|
|
Driving system |
Glue shelf |
Have |
||
|
Main motor |
4.0 KW |
Belts |
2 |
|
|
Reducer type |
RV type |
Core mould |
2 |
|
|
Cutting motor |
Stepper motor |
Baldes quantity |
6 standard |
|
|
Glue pump |
750W |
Area space |
8000*8000 mm |
|
|
Mainframe size |
4000*1600*1600 mm |
Weight |
2000 KG |
|
|
Cut left -right move |
Belt+servo motor |
Synchronism cutting |
Servo motor |
|
whatspp contact: +86 13587995528 (caroline )
-
