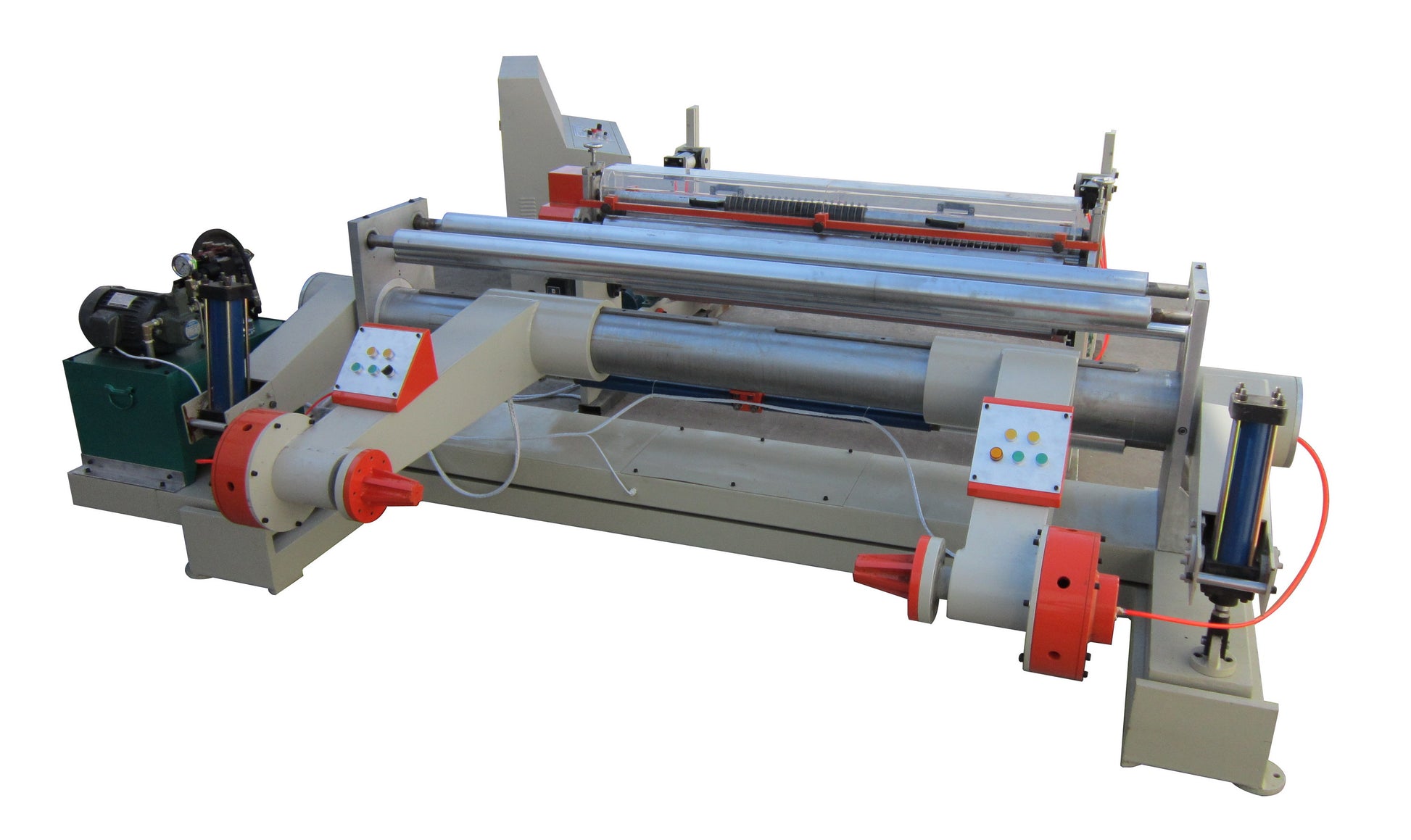

JUMBO PAPER ROLL SLITTER REWINDER MACHINE
USE:
Suitable for all kinds of kraft paper, tea paperboard, grass paperboard, calico and art paper cutting
FEATURE:
- Two blades cutting;thicken blade;2.The two side of the paper will be smooth after the cutting,without any burring;3. Tray paper will be tidy with two sides feat;4. With the computer rectified system and it can rectified automatically.5. All the operation will be finished on the panel with ease operation;6. With high capacity, the single machine can be provided for three sets of reel-pipe machine;7. S.S structure body; beautiful performance;8. Pneumatic discharge with easy operation
|
Technical Parameter |
Control system |
||
|
Jumbo roll width |
25-1600 mm |
PLC controller |
-- |
|
Un-winder diameter |
1300 mm |
Touch screen |
-- |
|
Re-winder diameter |
1100 mm |
transducer |
YASKAWA |
|
Slitting speed |
0-300 m/min |
Electrical product |
CHINT |
|
Slitting range |
60-600 g |
Signal part |
SHHG |
|
Re-winding method |
stalk involution |
Pneumatic part |
AIRTAC |
|
Blade quantity |
21 pairs |
Driving system |
|
|
Load paper roll |
Pneumatic way |
Main motor |
5.5 KW |
|
Speed adjust |
Transducer |
Load paper power |
2.2 KW |
|
Power supply |
3*380V |
Correction motor |
Y110 6:1 |
|
Mainframe & Weight |
Winding reducer |
WPA120 |
|
|
Un-winder part |
1300*3000*1200 mm |
Load paper reducer |
WPA100 |
|
Re-winder part |
2300*2800*1400 mm |
Driving way |
Connected bearing |
|
Up-blade |
105*70*4 |
Equipped devices |
|
|
Low-blade |
105*70*4 |
Load paper way |
Pneumatic way |
|
Weight |
5000 KGS |
Unload paper way |
Pneumatic |
|
Accessories |
Auto edge correction |
Electric screw correct device |
|
|
Useful tool |
1 set |
Counter meters |
Automatically counter |
|
Wrench |
Hex wrench |
Tension correction |
Pneumatic adjust |
|
One instruction manual |
Brake |
Double steam brake adjust |
|
