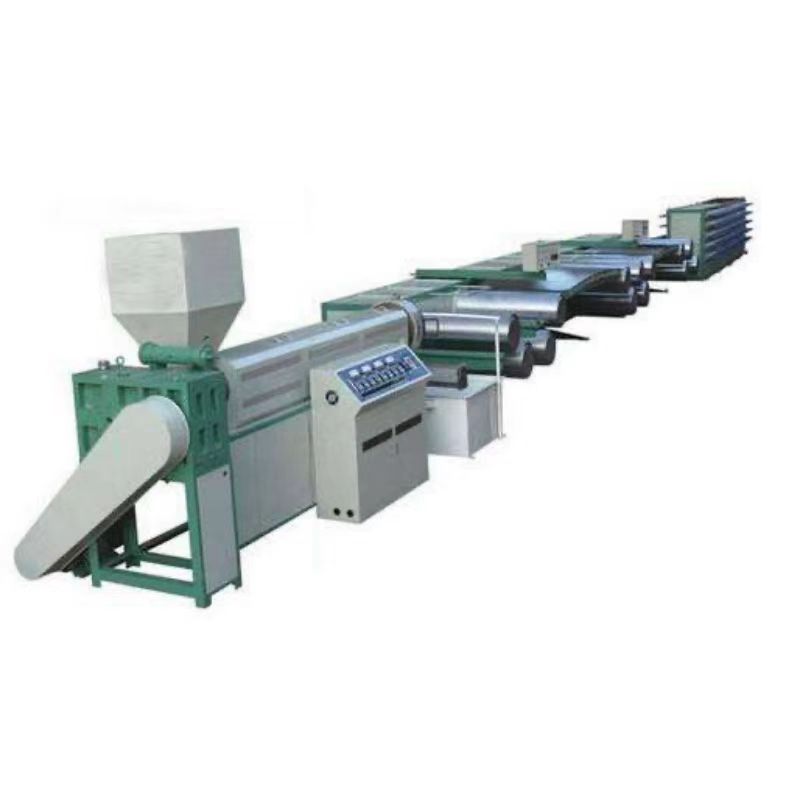

LF-700 Extruder machine for making pp woven bags wire
LF-700 Extruder machine for making pp woven bags wire
Couldn't load pickup availability
1.The drawing machine , using material of polypropylene and high density polyethylene, through heating, extruding and drawing, makes tape that is then winded for the weaving of the circular loom.
2..Having been improved so many times, the machine can use 100% recycled PP and PE granules or powder to produce yarn.
3.The screw and cylinder are made of nitrided 38CrMoAlA alloy steel, the hardness of which can reach over HV 950. Helical gear reducer made of 20CrMnTi alloy is applied to the extruder as well.
4.The chain wheel adopts 45# medium carbon steel after being treated by high-frequency quench.
5.The driving rollers are electroplated with hard Cr and the self-control tension winding roller is adopted by the traction unit.
|
NAME |
SPECIFICATION |
|
Width of the wire |
2-8mm |
|
Capacity |
1-1.5ton /24 hours |
|
Main motor |
Jiangsu Nanhua motor 30KW Pioneer frequency converter 37KW |
|
Traction frame |
Iron plate thickness 12mm width 1.2meter |
|
Reduction box |
hardened gear ( 250) |
|
screw |
38CrMoAlΦ125*3500mm nitrided |
|
Barrel |
38CrMoAl Φ245mm *3500mm alloy steel |
|
Tee joint |
New type IDΦ450 ODΦ520 |
|
Die |
New type 38# length 700mmfine polished and chrome plated |
|
Traction motor |
Jiangsu Nanhua motor 4KW 1set 7.5KW 1set Pioneer frequency converter 5.5KW 1set , 11KW 1set Double frequency synchronous speed regulation |
|
Bearing |
SMP213 |
|
Roller |
Φ420*780mm 12 of then are chrome plated，Axis fixed roller rotation Channel steel 16.18# |
|
Chain |
1 inch 2rows supplied by hangzhou ziqiang |
|
Chian wheel |
NO12 channel steel ,nitrided. NO.45 medium carbon steel treated with hign frequency quenching Draw ratio1：20 /1:5.6 |
|
Oven |
Single oven |
|
Barrel heating |
heating energy-saving ,1 dual frequency converter ,all with touch screen and weight adjustment |
|
Water tank |
Stainless steel tube 114 # Water knife chrome plated |
|
Cutter shaft |
1 pieces |
|
New Cutter ring New cutter shaft |
2 pieces |
|
Magnetic powder cluth |
5KG magnetic powder cluth winding |
|
Distribution box |
Digital temperature controller ,automatic control. Touch screen |
|
Size |
35*1.5*1.7meter |
|
Weight |
8000KGS |
