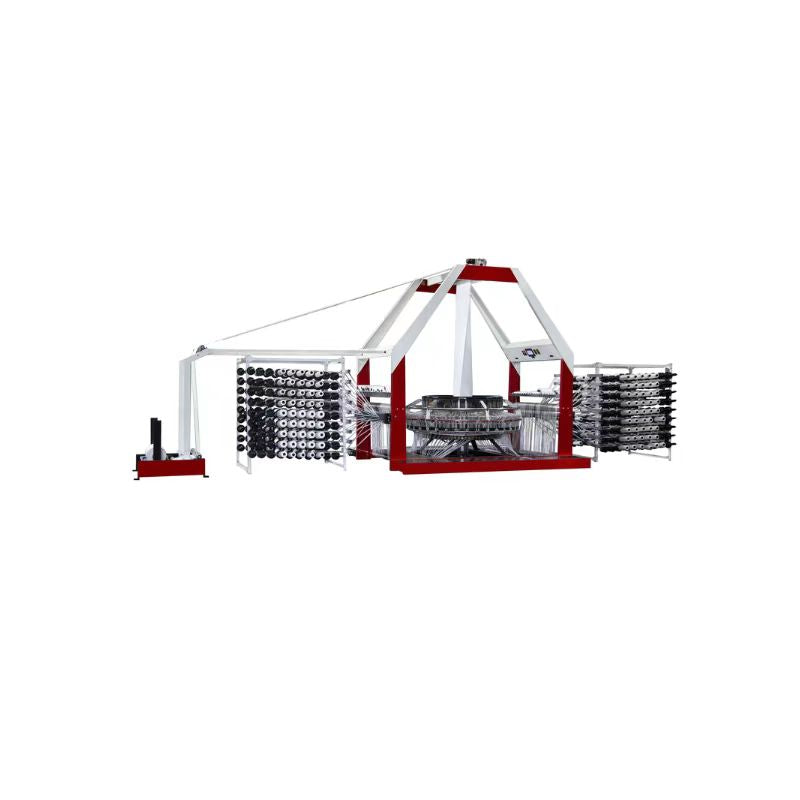

LF-850-6 Circular Loom
six shuttle circular looms represents a new generation of looms for weaving tubular or flat fabric from PP/HDPE tapes. Using the principle of high-speed shuttleless roller suspension, The let-off part adopts a chainless and sprocketless device 。 it is suitable for valve bags, transparent woven bags and non-slip woven bags.
Advantages：
Low spare part consumption & easy maintenance. The shuttle without shuttle wheel,without chain without chain wheel. Save the cost of wearing parts.
Energy saving, low noise, no need for lubricating oil, stable operation.
Weft line wireless bluetooth device, fault area display, output display data is intuitive.
The most advanced weft inspection system configuration reduces scrap rate and improves work efficiency;
Fully automatic host and upgrade synchronous control system to ensure smooth and smooth fabric
|
Type |
LF-850-6 |
|
|
Tubular diameter (bags width ) |
300-850mm |
The wire width ＜ 2 mm, the bag width is less than 72CM, the wire width > 2 mm. Bag width is less than 85CM |
|
Maximum number of warps |
720 |
|
|
Maximum diameter of weft thread (bobbin with wire) |
105mm |
|
|
Main motoir Rotating speed |
140-160 rpm |
|
|
Weaving speed |
13kouwire:3200meter/24hours |
18kou wire :2500meter /24hours |
|
Main motor |
DC Motor (Servo)3.5KW |
continuous normal rating 1.5-1.8KW |
|
Cloth winder motor |
0.025KW |
continuous normal rating 0.02KW |
|
Take up motor |
0.3KW * 2 pcs |
continuous normal rating0.25KW |
|
24-hour actual power consumption |
30-40KW |
The thicker the bag, the more electricity |
|
Weft density |
adjustable |
on touch screen |
|
Upper and lower frame ring |
Thickened steel ring |
Reduce warp yarn splitting and damage to the yarn |
|
Shuttle body part |
Imported nylon injection molding.; |
Lightweight and wear-resistant |
|
Bluetooth wireless weft inspection system |
High sensitivity |
Automatic stop when the weft thread is broken |
|
Cloth machine |
auto Synchronize |
When the circular loom stops, the winding machine stops synchronously and will not wear out the woven fabric |
|
bearing |
Japanese bearings |
Good quality |
|
Size |
8600*2300*3100 |
Installation size |
|
Weight |
1800KGS |
|
-
