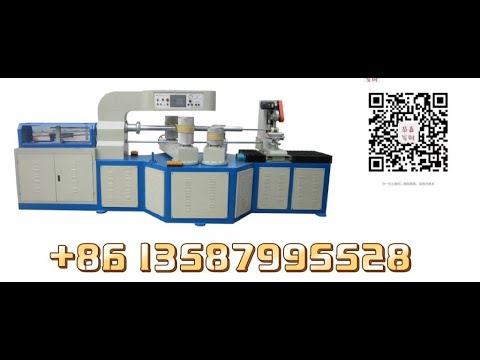

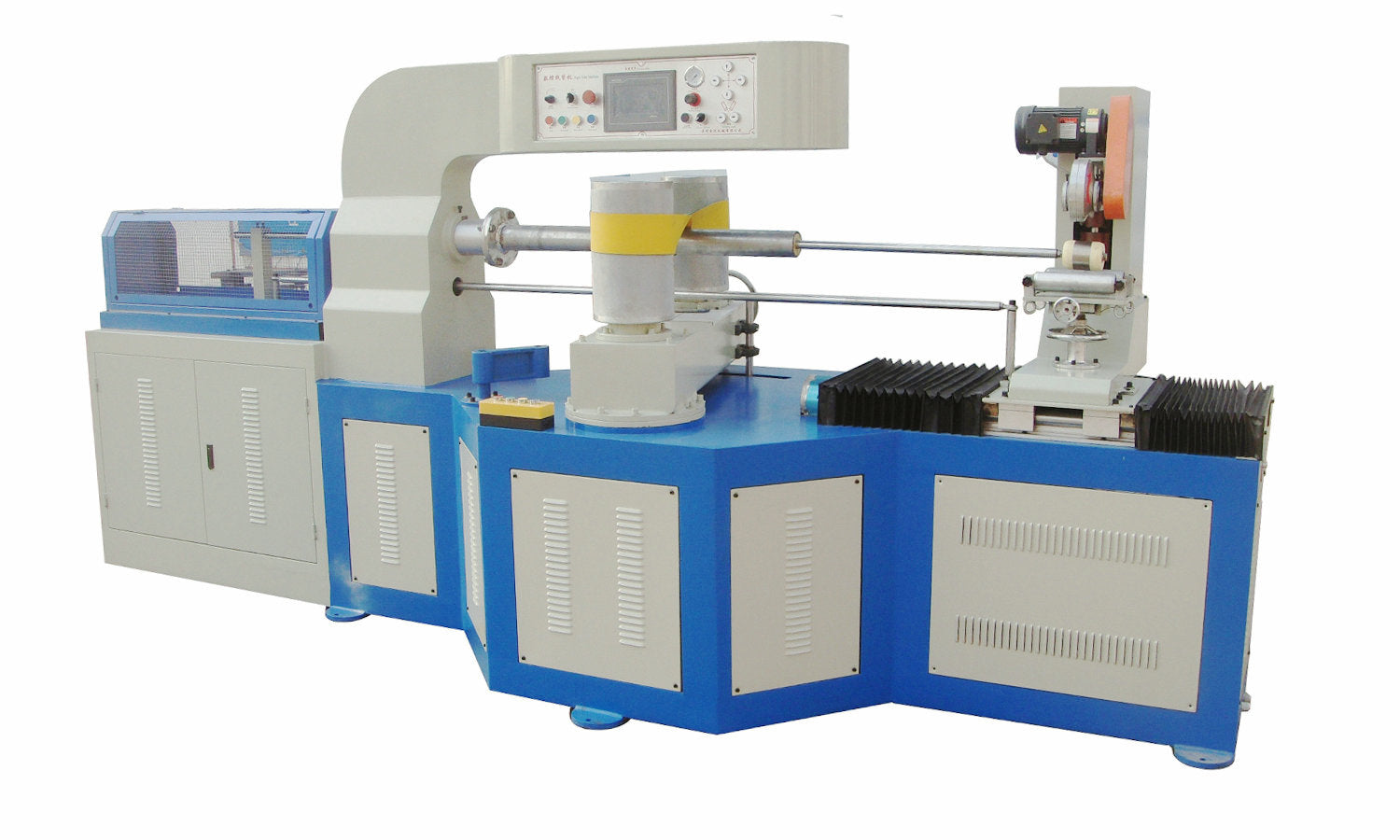

PAPER TUBE MACHINE
PAPER TUBE MACHINE
Couldn't load pickup availability
PAPER TUBE MACHINE
USE: Suitable for all kind of paper tube / paper can production. Such as package tin, tea caddy,
food cans, wine cans, fireworks tube, calendar tube, fax paper core, etc.
FEATURE:
Numerical control servo cutter device, high precision cutting;
Automatically cut, automatically fall pipe, automatically change speed and revert;
Computer PLC control, touch screen man-machine interface operation;
Round knife cutting, incision more smooth, performance more stable;
with polyurethane scraper and high carbon steel plastic knife, durable in use;
Integration linkage device of integral paper reel stand and glue system, all electric regulation to feed paper;
With multifunction waxing paper device and auto stop when paper cut off.
|
Technical Parameter |
Control system |
||||
|
Number of roller |
3-8 layer |
PLC controller |
Delta DVP14SS2 |
||
|
Tube diameter |
15-150 mm |
Touch screen |
MCGS TPC7062 |
||
|
Tube wall-thickness |
0.5-5 mm |
Transducer |
YASKAWA 5.5 KW |
||
|
Core mould fixed way |
Flank chuck |
Electric part |
CHINT |
||
|
Winding head |
2 |
Single part |
SHHG |
||
|
Cutting way |
Round knife |
Pneumatic part |
AIRTAC |
||
|
Gluing way |
Single / double sides |
Fix length way |
Optoelectronic switch/encode |
||
|
Operator |
1-2 person |
Equip device |
|||
|
Winding speed |
3-20 m/min |
Paper shelf type |
Integral reel stand |
||
|
Speed control |
Transducer |
Auto fall tube shelf |
Have |
||
|
Driving system |
Glue shelf |
Have |
|||
|
Main motor |
5.5 KW |
Belts |
2 |
||
|
Reducer type |
WPDO155 |
Core mould |
2 |
||
|
Cutting motor |
Stepper motor |
Cut up-down control |
Y lead screw+ stepper motor |
||
|
Glue pump |
750 W |
Cut left-right control |
Z lead screw+ servo motor |
||
|
Mainframe size & Weight |
|||||
|
Mainframe size |
4200*1800*2000 mm |
Weight |
3000 KG |
||
|
Area space |
11000*8000 mm |
||||
whatspp contact: +86 13587995528 (caroline )
-
