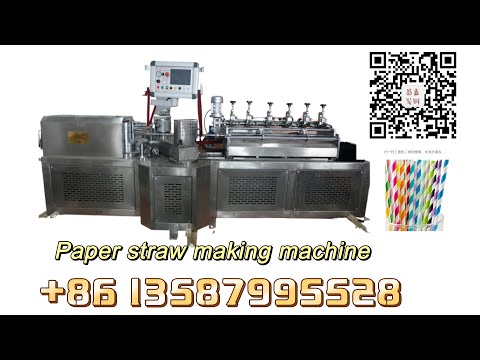

paper straw making machine （stainless steel）
paper straw making machine （stainless steel）
Couldn't load pickup availability

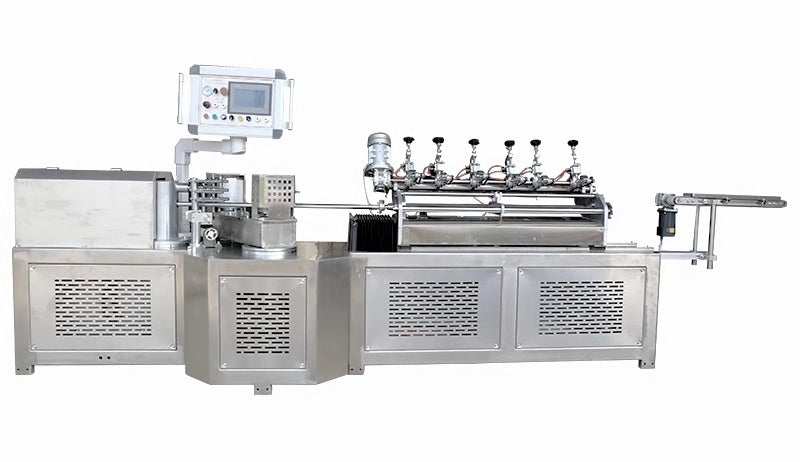

PAPER TUBE MAKING MACHINE （stainless steel）
USE:
Suitable for small diameter (5-12 mm) paper tube production, such as paper straw, pen tube
FEATURE:
Automatically cut, automatically fall pipe, automatically change speed and revert;
With online multi-cut blades, no need secondary cutting, save labor and time.
|
Technical Parameter |
Control system |
||
|
Number of roller |
3 layer |
Main motor |
2.2 KW |
|
Tube diameter |
5-12 mm |
Reducer type |
RV110-1:15 |
|
Wall-thickness |
0.5-1 mm |
Conveyor reducer |
RV 30/40-1:7.5 |
|
Core mould fixed |
Flank chuck |
Servo motor |
Teco, Taiwan |
|
Winding head |
2 |
Servo driver |
Teco, Taiwan |
|
Cutting way |
6 multi-blade |
PLC controller |
Delta DVP28SV |
|
Gluing way |
Single side |
Touch screen |
MCGS TPC7062 |
|
Operator |
1-2 person |
Inverter |
YASKAWA3.7 KW |
|
Winding speed |
20-45 m/min |
Electric part |
CHINT |
|
Speed control |
Inverter |
Single part |
SHHG |
|
Cutting control |
Servo Sync |
Pneumatic part |
AIRTAC |
|
Air pressure |
0.6Mpa |
Fix length way |
Encode |
|
Power supply |
380V*3P/50Hz |
Configuration |
|
|
Straw collecter |
Auto |
Paper reel stand |
3 layers |
|
Angel correction |
Auto by motor |
Glue system |
3 layers |
|
Language |
English |
Conveyor |
1 set |
|
Measurement & weight |
Blades |
6 pieces |
|
|
Mainframe size |
3400*1400*1450 |
Belts |
5 pieces |
|
Area space |
6000*8000 mm |
Core mould |
2 set |
|
Weight |
1000 KGS |
Useful tool |
1 set |
whatspp contact: +86 13587995528 (caroline )
-
