PAPER TUBE RE-CUTTING MACHINE
PAPER TUBE RE-CUTTING MACHINE
Couldn't load pickup availability

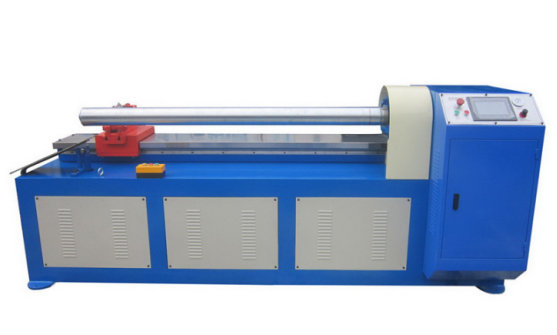

PAPER TUBE RE-CUTTING MACHINE
USE:
Suitable for large quantity and need to cut short-length paper tube cutting.
FEATURE:
- Each cut need just 0.5s. (need to change for the different thickness );
- Circuit adopt import plc programmable logic controller control,and color touch-screenoperation;
- With automatic off,automatic folder management,automatic shutdown;
- Stable performance,fully automatic production,system self-diagnostics and warning;
- Positioning servo systems,precision ball screw drive,cutting the resolution up to 0.01mm..
|
Technical Parameter |
|||
|
Tube length |
10-1500 mm |
PLC controller |
Delta DVP12SC |
|
Tube diameter |
50-200 mm |
Touch screen |
MCGS TPC7062 |
|
Tube wall-thickness |
1-20 mm |
Executive part |
CHINT |
|
Knife quantity |
1 |
Signal part |
Omron |
|
Cutting way |
Tube rotate only |
Pneumatic part |
AIRTAC |
|
Load and unload |
manual |
Main motor |
2.2 KW |
|
Feeding way |
Pneumatic |
Mobile screw |
Taiwan |
|
Operator |
1 person |
Move track |
Taiwan |
|
Speed control |
Transducer |
knife |
2 |
|
Mainframe size |
2800*750*1300 mm |
Useful tool |
1 set |
|
Weight |
800 KG |
||
whatspp contact: +86 13587995528 (caroline )
-
