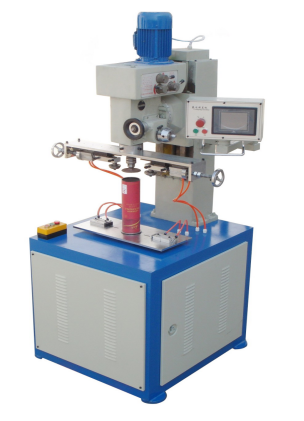

PAPER TUBE SEALING MACHINE
PAPER TUBE SEALING MACHINE
Couldn't load pickup availability
PAPER TUBE SEALING MACHINE
USE:1.Apply to paper covers composite cans, calendars cans, tea cans, wine cans, tin covered composite cans, cardboard box curling and edge cover.
FEATURE:1.Suitable for mass production of composite cans;2.large-scale, maximum diameter 400 mm, maximum height 500 mm; 3.CNC operation, touch screen and PLC control, three kinds of production modes switch easily.
|
MAIN SPECIFICATION |
|
|
Tube diameter |
20-400 mm |
|
Tube wall-thickness |
1-3 mm |
|
Tube length |
20-500 mm |
|
Working air pressure |
0.2-0.6 MPA |
|
Main motor |
2.2 KW |
|
Touch screen |
MCGS |
|
PLC controller |
Delta |
|
Product speed |
10-20 / min |
|
Operate mode |
Manual |
|
Mainframe size |
800*900*2000 mm |
|
Weight |
800 KGS |
-
