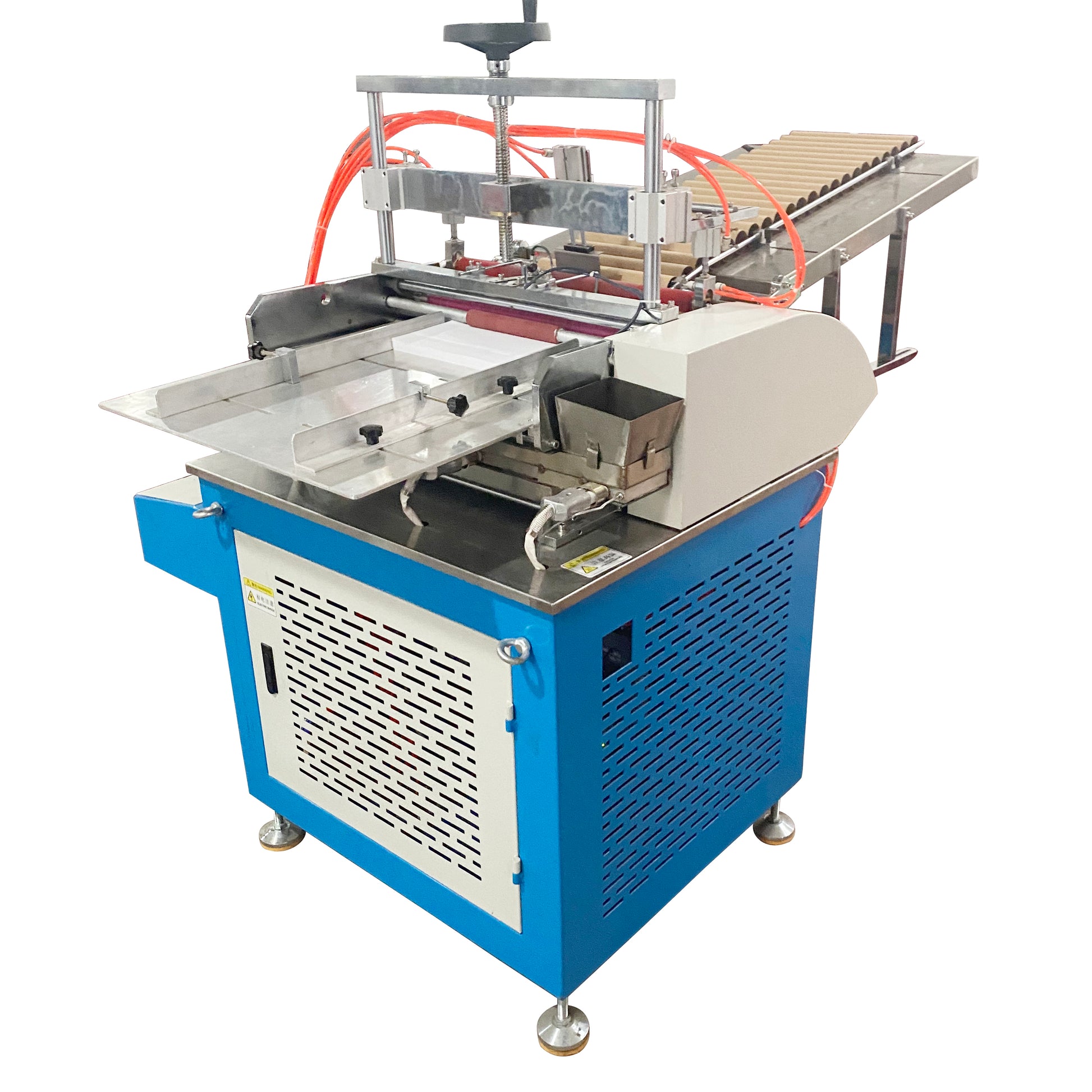

T-500B PAPER TUBE LABELING MACHINE

T-500B PAPER TUBE LABELING MACHINE

Detailed description

1. T-500BPaper tube labeling machine is applicable to chemical industry, pesticide industry, food industry, paper cans industry, etc
2. The machine is suitable for small batch and multispecies production, sticker label on the cylindrical container, half, or all label.
3. One machine can be used for variety of paper tube, change the label size or paper tube don't need to replace any parts, it only takes a few minutes to adjust to work
4. Operator simply puts labels into the storage, then machine will do automatic photoelectric detection,picking label, applying glue and labeling paper tube in 1 second.
5. The machine is hot melt glue labeling machine, labeling effect is good, with water or in wet high temperature 50-500 mmdoes not fall off.
6. Equipped with automatic control temperature heater and protection device: the glue does not dissolve, the motor not starts.

   MAIN SPECIFICATION
   Tube diameter	30-120 mm	Operate mode	Automatically
   Tube wall-thickness	1-5 mm	Label thickness	100-157g
   Tube length	100-450  mm	Label accuracy	±0.5MM
   Working air pressure	0.6 MPA	Label paper feed way	Automatic
   Main motor	3 KW	Operator	1
   Touch screen	XinJie	Mainframe size	1300*700*1500 mm
   PLC controller	XinJie	Weight	400 KG
   Product speed	10-40 / min	One instruction manual
